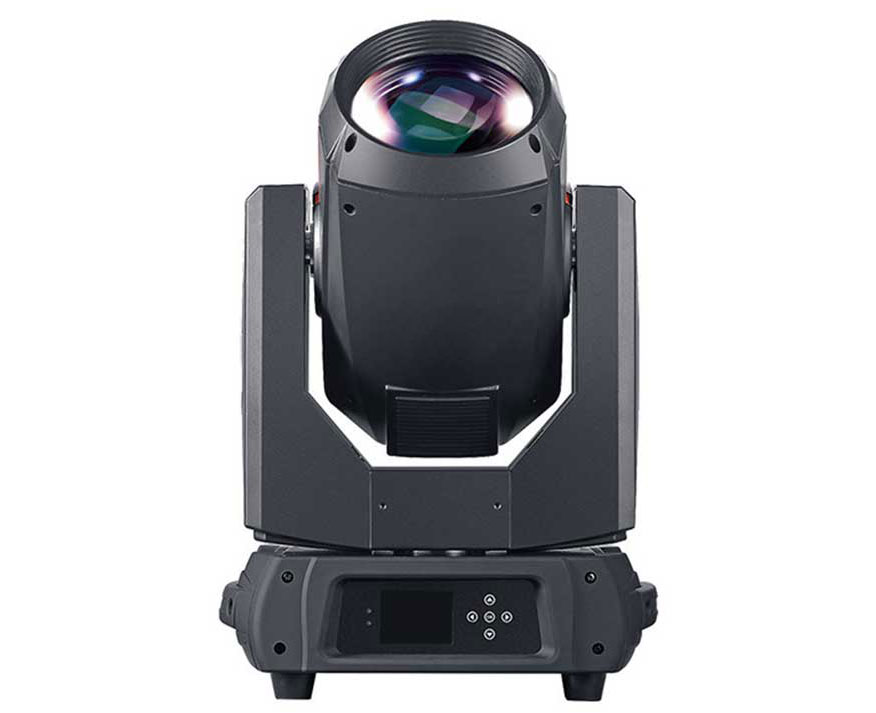

15R 330W pure beam Light
Voltage: 100V-240V 50 / 60Hz
Ballast: Electronic ballast
Bulb: OSRAM SIRIUS HRI 330W (optional YODN R17 350W)
Color temperature: 7500K
Average life: 1500H
Number of Channels: 3 DMX Modes 21/23/34 Channels DMX
Control: 23 international standard DMX512 control, master-slave mode, self-propelled mode
Color: with 6 colors + blank with full color or half-color function, also has a UV heat shield
Fixed pattern: with 14 fixed pattern pieces + blank
Rotating pattern: with 8 rotating pattern plus blank, pattern piece can be freely inserted and replaced
Strobe: 0-13 times / second. With random strobe
Prism: Rotate 3 prism to rotate in both directions
Prism rotation: 16 macro functions with prism effect.
Soft effect: adjustable soft light spot angle
Aperture: 5% to 100% with an aperture effect
Focus: Linear electronic focus
Dimming: 0-100% linear adjustment
Projected light range: X to 540 degrees, Y to 270 degrees, can automatically correct positioning
Beam angle: 5 ° to 27 °
Protection class: IP20
Net weight: 23kg
Ballast: Electronic ballast
Bulb: OSRAM SIRIUS HRI 330W (optional YODN R17 350W)
Color temperature: 7500K
Average life: 1500H
Number of Channels: 3 DMX Modes 21/23/34 Channels DMX
Control: 23 international standard DMX512 control, master-slave mode, self-propelled mode
Color: with 6 colors + blank with full color or half-color function, also has a UV heat shield
Fixed pattern: with 14 fixed pattern pieces + blank
Rotating pattern: with 8 rotating pattern plus blank, pattern piece can be freely inserted and replaced
Strobe: 0-13 times / second. With random strobe
Prism: Rotate 3 prism to rotate in both directions
Prism rotation: 16 macro functions with prism effect.
Soft effect: adjustable soft light spot angle
Aperture: 5% to 100% with an aperture effect
Focus: Linear electronic focus
Dimming: 0-100% linear adjustment
Projected light range: X to 540 degrees, Y to 270 degrees, can automatically correct positioning
Beam angle: 5 ° to 27 °
Protection class: IP20
Net weight: 23kg
